AMP-1000 Metal Diverter
AMP-1000 metal diverter is generally used for cotton textile factory in spinning procedure, and can be directly installed on the conveying pipe. It can automatically detect and divert the metal particles, which mixed in the cotton flow. It is very important equipment which can ensure the safety of textile enterprises in the blowing-carding product lines and other fiber production lines. It had been improvement designed in 2014, the sensitivity is higher and the ability of anti- electromagnetic wave is stronger.
AMP-1000 be installed in the blowing-carding line
◆The principle of metal detection
The cotton often contain short iron wire, screws, washers and other metal particles, when the metal particles which mixed in the fiber go through the detection area of the metal diverter, the detector will send the signal to the diverter. Then the diverter will divert the cotton flow which contains metal particles to the collector box, to prevent the metal particles from entering to the next procedure, or the metal particle may destroy the machinery equipment and cause the fire emergency.

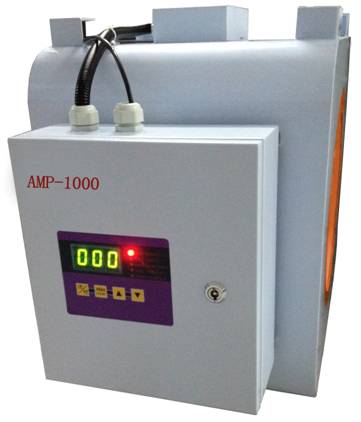

◆New design of 2014
The new design control box of AMP-1000 can be installed on the metal detector or directly installed on the wall. The new design make the device have much higher sensitivity and stronger immunity ability.
◆The principle of metal detection
The cotton often contain short iron wire, screws, washers and other metal particles, when the metal particles which mixed in the fiber go through the detection area of the metal diverter, the detector will send the signal to the diverter. Then the diverter will divert the cotton flow which contains metal particles to the collector box, to prevent the metal particles from entering to the next procedure, or the metal particle may destroy the machinery equipment and cause the fire emergency.
◆New design of 2014
The new design control box of AMP-1000 can be installed on the metal detector or directly installed on the wall. The new design make the device have much higher sensitivity and stronger immunity ability.

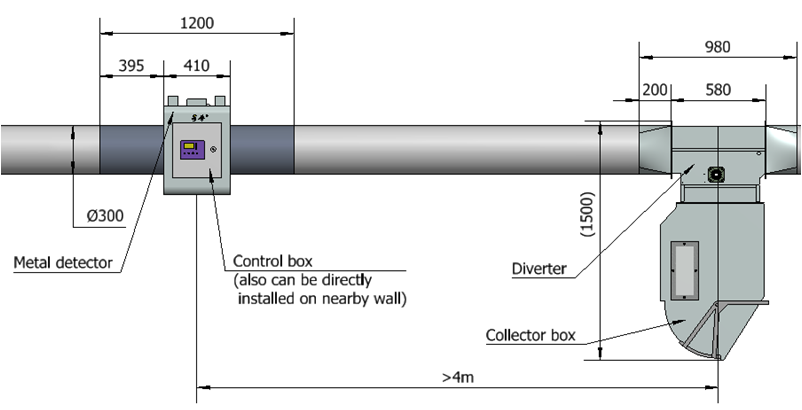

AMP-1000 standard installation（for positive and negative procedure）
Specifications
| Metal sensitivity | Can detect the steel ball larger than Φ3mm. |
| Response Time | Less than 200ms |
| Power | AC220V±10% |
| Pneumatic Pressure | 0.6~0.8MPa |
| Alarm Sound Level | ＞90db |
| Sound level of alarm | ＞90db |
| Environment Requirement | temperature：﹣10℃-40℃； relative humidity：（20－75）%RH |
